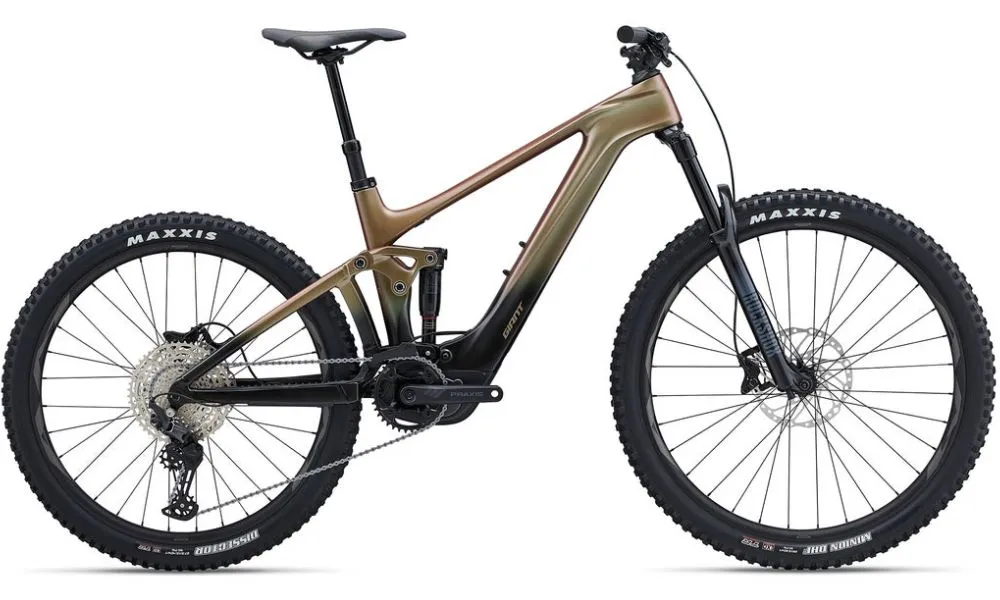

Giant 2023 Trance X Advanced E Elite 3
Accelerate up climbs, float through rock gardens, experience more power, agility and control with this lightweight, full-power E-MTB. A new revolutionary new battery technology minimizes size and weight, while still providing full power. Ride technical trails the way you always dreamed of.
LIGHTER WEIGHT
New EnergyPak 400 battery is designed to be ultra light. You get all the power but in a smaller package that’s cleanly integrated with the composite frameset.
ADVANCED COCKPIT CONTROL
RideControl Ergo 3 remote can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.
MORE POWER
Our revolutionary battery cell technology enables the SyncDrive Pro motor to provide full power. With 85Nm torque and weighing just 2.7kg, this results in quicker acceleration and superior climbing capabilities on technical trails.
Specifications
Giant 2023 Trance X Advanced E Elite 3
Frame
Colour: Messier/PantherFrame: Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
Fork: RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimized
Shock: Rock Shox Deluxe Select R, DebonAir, 185x52.5mm Trunnion mount, custom tuned
Drivetrain
Drive Unit: Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technologyBattery: Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Crankset: Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet custom forged crankarm set (S:160, M/L: 165, XL:170)
Pedals:
Chain: KMC e.12 Turbo, EcoProteq, e-bike optimized
Bottom Bracket: NA
Rear Derailleur: Shimano Deore 12-speed
Front Derailleur: MRP HD2 co-moulded chain guide
Derailleur Shifter: Shimano Deore
Freewheel/Cassette: Shimano CS-M6100-12, 10-51T, 12-speed
Wheels
Tyres: [F]Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [R] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXOWheels/Rims: Giant AM 29" [F]/ 27.5" [R], Tubeless ready, 30mm inner width, E-bike optimized
Hubs: Shimano MT410, Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Braking System
Brakes: Shimano BR-M420, 4-piston, hydraulic disc, 203mmBrake Levers: Shimano Deore, I-spec EV
Other
Stem: Giant Contact SL 35Saddle: Giant Romero, Neutral
Seat Post: Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)
Control: Giant RideControl Ergo3, grip integrated remote
Display: Giant RideControl GO, frame integrated LED console Optional wireless ANT display
Geometry
Giant 2023 Trance X Advanced E Elite 3
-
- S
- 163 cm 174 cm
-
- M
- 171 cm 182 cm
-
- L
- 176 cm 186 cm
-
- XL
- 183 cm 193 cm
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | SEAT TUBE LENGTH (mm) | 400 | 425 | 450 | 475 |
| B | SEAT TUBE ANGLE | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° | 76.0° | 76.7° |
| C | TOP TUBE LENGTH (mm) | 577 | 575 | 607 | 605 | 636 | 634 | 665 | 663 |
| D | HEAD TUBE LENGTH (mm) | 95 | 100 | 115 | 130 |
| E | HEAD TUBE ANGLE | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | FORK RAKE (mm) | 44 | 44 | 44 | 44 |
| G | TRAIL (mm) | 113.1 | 108 | 113.1 | 108 | 113.1 | 108 | 113.1 | 108 |
| H | WHEELBASE (mm) | 1194 | 1195 | 1215 | 1212 | 1244 | 1244 | 1275 | 1275 |
| I | CHAIN STAY LENGTH (mm) | 447 | 447 | 447 | 447 | 447 | 447 | 447 | 447 |
| J | BOTTOM BRACKET DROP (mm) | 10 | 10 | 10 | 10 |
| K | STACK (mm) | 607 | 601 | 611 | 605 | 625 | 619 | 639 | 633 |
| L | REACH (mm) | 439 | 447 | 457 | 462 | 480 | 487 | 505 | 513 |
| M | STAND OVER HEIGHT (mm) | 726 | 735 | 733 | 742 | 732 | 741 | 741 | 750 |
| O | STEM LENGTH (mm) | 40 | 40 | 50 | 50 |
| P | CRANK LENGTH (mm) | 160 | 165 | 165 | 170 |
| Q | WHEEL SIZE | R27.5" / F29" | R27.5" / F29" | R27.5" / F29" | R27.5" / F29" |
